Semi-Direct Acting · Normal Closed · Diaphragm Structure

2W Zero Differential Pressure Solenoid Valves for Automated Fluid Control

Working pressure 0~10bar, sizes 3/8″ to 2″ (DN10~50mm), available in brass and S.S.304 with AC/DC voltage options — IP65 rated with German technology.

Overview

2W zero differential pressure solenoid valve normal closed is one type of solenoid valve whose on-off is acted by electromagnetism, which is also called electromagnetic valve. The solenoid valve is one basic automatic component, which is belong to actuator, but not limited to hydraulic or pneumatic. It is used in the industrial system to adjust the mediums direction, flow, speed and other technical parameters. According to its working principle, the solenoid valve can be divided into direct acting solenoid valve, semi-direct acting solenoid valve and pilot operated solenoid valve. Flowspec Luokai can manufacture the 2W zero differential pressure solenoid valve normal closed with brass and stainless steel materials.

1. Features

Diaphragm structure
Semi direct acting (Normal Closed)
Compact design, nice
No noise, zero leakage
Fast action, high frequency
German technology, reliable quality
Simple system, easy connected with computer, low-cost

2. Technical Specifications

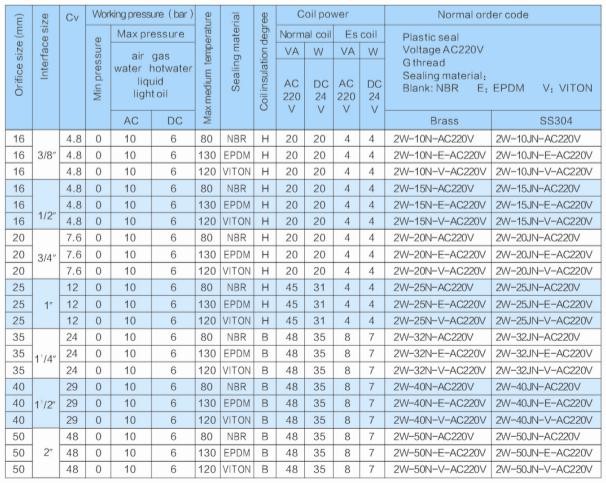

Working pressure: 0~10bar (details see specification table)

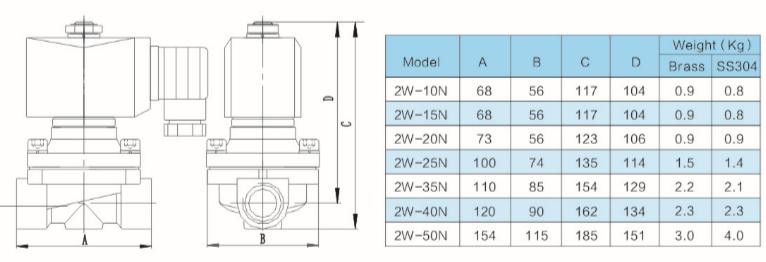

Size: 3/8″ ~ 2″ (DN10~50mm)
Materials: brass, S.S.304
Voltage: AC220 ~ 240VAC, 110VAC, 24VAC 50/60Hz, DC24V, DC12V IP65 H degree (iron seal coil: IP54 B degree)
Applicable medium: water, liquids, air, light oil (viscosity≤20cst)
Applicable temperature: 0℃ ~ +80℃ (higher temperature is available upon request)
