CPVC Plastic Wafer Type Butterfly Valve Product Information

CPVC plastic wafer type butterfly valve is manufactured according to GB/T27725-2011. CPVC plastic butterfly valve is featured with high mechanical strength & tenacity, excellent anti-corrosion, good flame resistance, anti-aging & UV resistance, long service and easy installtion. This type of plastic butterfly valve is first choice in the anti-corrision pipes in the fields of petroleum, chlorine alkaline, chemical fiber, fuel, pesticide, light industry and water treatment. Just feel free to contact us now to get best prices. 30 years of experience. High quality. Big stock. Fast delivery.

1. FEATURES

Excellent durability and flow characteristics
Excellent anti-corrosion resin, expanding the plastic valve applications
Dismountable handle and lock plate, easier operation
Handle and loack plate can change the direction of opening and closing with 180° according to actual requirements on site

3. STANDARDS

Design & manufacturing: GB/T27725-2011
Matching flanges: ANSI, JIS, DIN standards
Inspection & testing: API598, GB/T13927

2. TECHNICAL SPECIFICATIONS

PN6~PN10
Size: 1-1/2”~6”(DN40~DN150mm)
Materials: plastic, CPVC
Applicable medium: water, oil, alkaline, corrosive liquids
Applicable temperature: -40℃~+95℃

4. APPLICATIONS

Water treatment
Seawater desalinization
Petroleum industry
Pharmaceutical factory
Fiber industry
Fuel & oil
Pesticide factory
Light industry

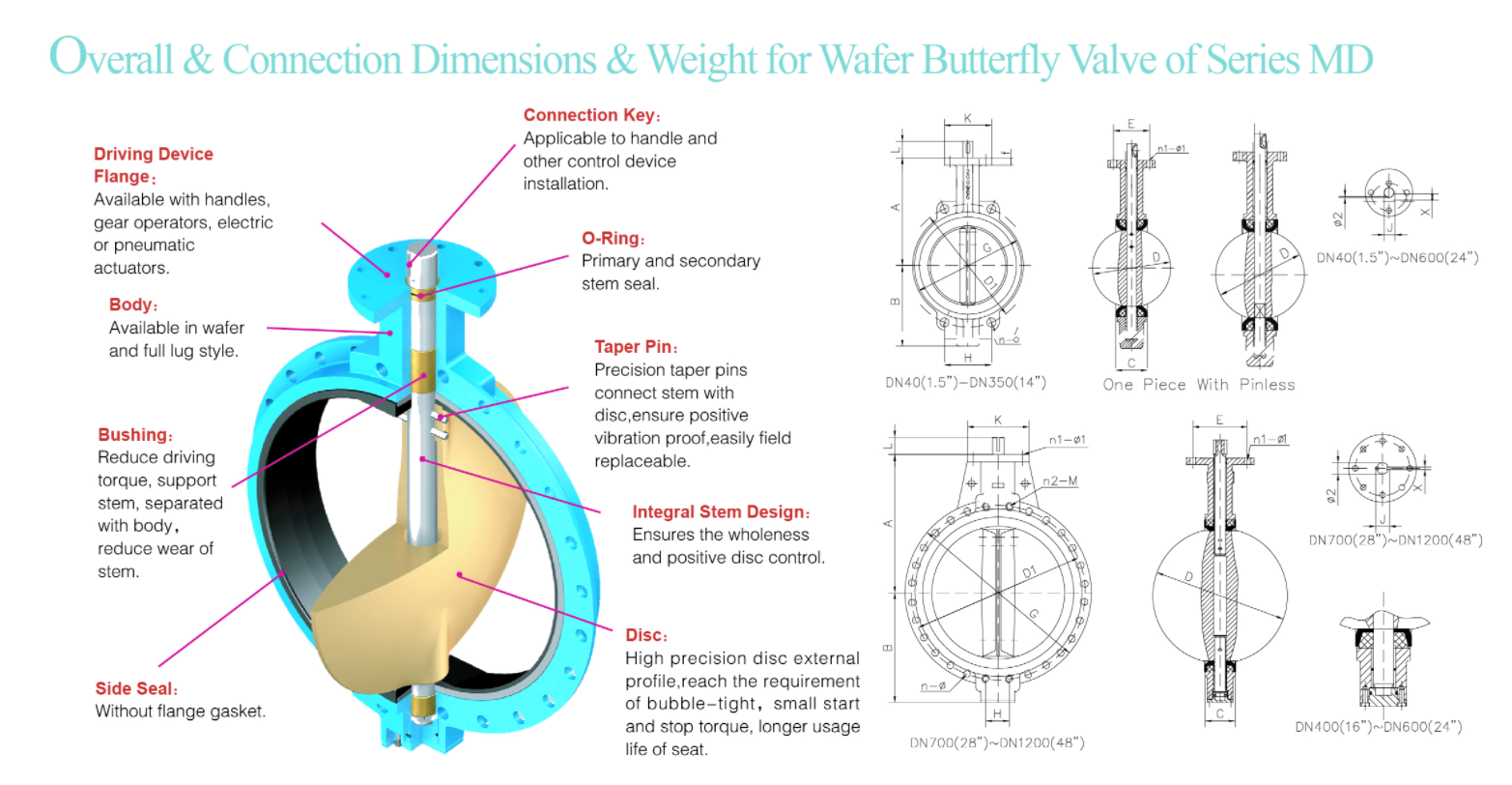

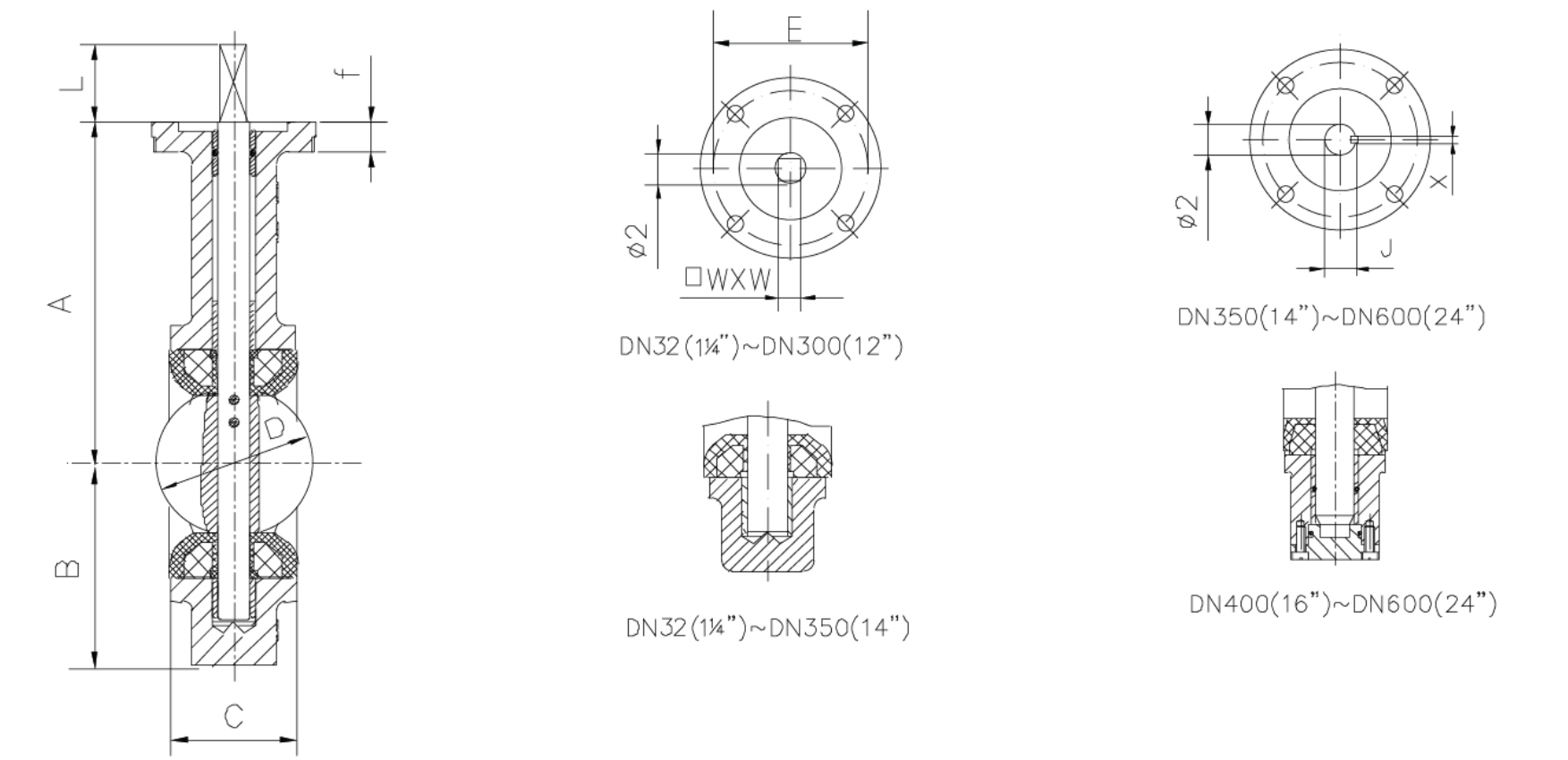

Size		A	B	C	D	L	D1	D2	∅1	∅K	E	R1 (PN10)	R2 (PN16)	∅2	f	J	x	□W×W	Weight (kg)
mm	inch	A	B	C	D	L	D1	D2	∅1	∅K	E	R1 (PN10)	R2 (PN16)	∅2	f	J	x	□W×W	Weight (kg)
32	1¼	125	73	33	36	28	100	100	7	65	50	R9.5	R9.5	12.6	12	–	–	9×9	1.6
40	1.5	125	73	33	43	28	110	110	7	65	50	R9.5	R9.5	12.6	12	–	–	9×9	1.8
50	2	125	73	43	53	28	125	125	7	65	50	R9.5	R9.5	12.6	12	–	–	9×9	2.3
65	2.5	136	82	46	64	28	145	145	7	65	50	R9.5	R9.5	12.6	12	–	–	9×9	3
80	3	142	91	46	79	28	160	160	7	65	50	R9.5	R9.5	12.6	12	–	–	9×9	3.7
100	4	163	107	52	104	28	180	180	10	90	70	R9.5	R9.5	15.77	12	–	–	11×11	5.2
125	5	176	127	56	123	28	210	210	10	90	70	R9.5	R9.5	18.92	12	–	–	14×14	6.8
150	6	197	143	56	155	28	240	240	10	90	70	R11.5	R11.5	18.92	12	–	–	14×14	8.2
200	8	230	170	60	202	38	295	295	12	125	102	R11.5	R11.5	22.1	15	–	–	17×17	14
250	10	260	204	68	250	38	350	355	12	125	102	R11.5	R14	28.45	15	–	–	22×22	23
300	12	292	240	78	302	38	400	410	12	125	102	R11.5	R14	31.6	20	–	–	22×22	32
350	14	336	267	78	333	45	460	470	14	150	125	R11.5	R14	31.6	20	34.6	8	–	43
400	16	368	325	102	390	51/60	515	525	18	175	140	R14	R15.5	33.15	22	36.15	10	–	57
450	18	400	356	114	441	51/60	565	585	18	175	140	R14	R14	37.95	22	40.95	10	–	78
500	20	438	395	127	492	57/75	620	650	18	175	140	R14	R14	41.14	22	44.12	10	–	105
600	24	562	475	154	593	70/75	725	770	22	210	165	R15.5	R15.5	50.62	22	54.62	16	–	192

Size		A	B	C	D	L	H	D1	n-∅	K	E	n1-ø1	∅2	G	n2-M	f	J	X	Weight (kg)
(mm)	(inch)	A	B	C	D	L	H	D1	n-∅	K	E	n1-ø1	∅2	G	n2-M	f	J	X	Weight (kg)
40	1.5	145	70	33	43	28	77.77	110	4-18	65	50	4-7	12.6	100	–	13	13.8	3	2.3
50	2	161	80	43	53	28	84.84	120	4-23	65	50	4-7	12.6	100	–	13	13.8	3	2.8
65	2.5	175	89	46	64	28	96.2	136.2	4-26.5	65	50	4-7	12.6	120	–	13	13.8	3	3.5
80	3	181	95	46	79	28	61.23	160	8-18	65	50	4-7	12.6	127	–	13	13.8	3	3.7
100	4	200	114	52	104	28	70.8	185	4-24.5	90	70	4-10	15.77	156	–	13	17.77	5	5.4
125	5	213	127	56	123	28	82.28	215	4-23	90	70	4-10	18.92	190	–	13	20.92	5	7.7
150	6	226	139	56	156	28	91.08	238	4-25	90	70	4-10	18.92	212	–	13	20.92	5	9.3
200	8	260	175	60	202	38	112.89	295	4-25	125	102	4-12	22.1	268	–	15	24.1	5	14.5
200	8	260	175	60	202	38	76.35	295	4-23	125	102	4-12	22.1	268	–	15	24.1	5	14.5
250	10	292	203	68	250	38	92.4	357	4-29	125	102	4-12	28.45	325	–	15	31.45	8	23
300	12	337	242	78	302	38	105.34	407	4-29	125	102	4-12	31.6	403	–	20	34.6	8	36
350	14	368	267	78	333	45	91.11	467	4-30	150	125	4-14	31.6	436	–	20	34.6	8	45
400	16	400	325	102	390	51	100.47	515	4-26	175	140	4-18	33.15	488	–	22	36.15	10	65
400	16	400	325	102	390	60	102.42	525	4-30	175	140	4-18	33.15	488	–	22	36.15	10	65
450	18	422	345	114	441	51	88.39	565	4-26	175	140	4-18	37.95	536	–	22	40.95	10	86
450	18	422	345	114	441	60	91.51	585	4-30	175	140	4-18	37.95	536	–	22	40.95	10	86
500	20	480	378	127	492	57	86.99	620	4-26	175	140	4-18	41.15	590	–	22	44.15	10	113
500	20	480	378	127	492	75	101.68	650	4-33	175	140	4-18	41.15	590	–	22	44.15	10	113
600	24	562	475	154	593	70	113.42	725	20-30	210	165	4-22	50.62	816	–	22	54.65	16	209
600	24	562	475	154	593	75	120.46	770	20-36	210	165	4-22	50.62	816	–	22	54.65	16	209
700	28	624	543	165	695	66	109.65	840	24-30	300	254	8-18	63.35	895	–	30	71.4	18	292
700	28	624	543	165	695	70	109.65	840	24-36	300	254	8-18	63.35	910	–	30	71.4	18	292
800	32	672	606	190	795	66	124	950	24-33	300	254	8-18	63.35	1015	–	30	71.4	18	396
800	32	672	606	190	795	75	124	950	24-39	300	254	8-18	63.35	1025	–	30	71.4	18	396
900	36	720	670	203	865	110	117.57	1050	24-33	300	254	8-18	75	1115	4-M30	34	84	20	520
900	36	720	670	203	865	110	117.57	1050	24-39	300	254	8-18	75	1125	4-M36	34	84	20	520
1000	40	800	735	216	965	135	129.89	1160	24-36	300	254	8-18	85	1230	4-M33	35	95	22	668
1000	40	800	735	216	965	135	130.99	1170	24-43	300	254	8-18	85	1255	4-M39	35	95	22	668
1200	48	941	878	254	1160	150	135.26	1380	28-39	350	298	8-22	105	1455	4-M36	35	117	28	1080
1200	48	941	878	254	1160	150	136.24	1390	28-49	350	298	8-22	105	1485	4-M45	35	117	28	1080
