Automatic Water Control Float Valve with Plastic Ball Information

Automatic Water Control Float Valve with Plastic Ball is a type of threaded ends stainless steel floating valve, which floats on the tray and changes its opening as the gas flow rate changes. The float valve is part of the tower internals and the float valve is provided with three claws. Automatic Water Control Float Valve with Plastic Ball tray is provided with many circular holes, each of which is equipped with a valve disc with three legs. Automatic Water Control Float Valve with Plastic Ball is threaded ends normally, and with materials of stainless steel 304 and s.s.316 according to different mediums.
There are many types of floating valves, including circular type float valve, strip angle type float valve, threaded floating valve and flanged floating valve.
Flowspec Luokai can manufacture and supply Automatic Water Control Float Valve with Plastic Ball threaded ends with sizes of 1/2”~2” and materials of stainless steel 304/316. Just feel free to contact us now to get best prices. 30 years of experience. High quality. Big stock. Fast delivery.

1. WORKING PRINCIPLEThere are many holes on the float valve tower, all equipped with a valve on each hole, when there is no rise in vapor phase, the float valve is closed on the plate; when there is a vapor phase rise, float valve opens up impacted by the steam flow, and open degree increases along with the increase of the amount of vapor phase, rising vapor phase through the valve hole, in the floating to horizontal dispersion under the action of valve plates. Bubbling through the liquid layer, it makes a good contact with gas-liquid to achieve the ideal effect of heat and mass transfer.

3. APPLICATIONS

Water tower
Farm plant
Water storage tank
Water supply device

2. TECHNICAL SPECIFICATIONS

Sizes: 1/2″~2″
Media: water
Material: stainless steel 304, stainless steel 316
Applicable pressure: ≤0.8MPa
Applicable temperature: 0℃~+100℃
Threaded ends: ASME B1.20.1, BS21, DIN2999, ISO228/1
Test standard: MSS SP-110, QB/T 1199-1991

Product Descriptions

Size	1/2”-2”	Pressure	0-0.8MPa
MOQ	600 pieces	Application	General
Temperature	≤100℃	Packing	Plastic bag, box, carton, pallet
Material	SS304, SS316	Test Standard	MSS SP-110, QB/T 1199-1991
Thread Standard	ASME B1.20.1, BS21, DIN2999, ISO228/1
OEM	Accept customs customized

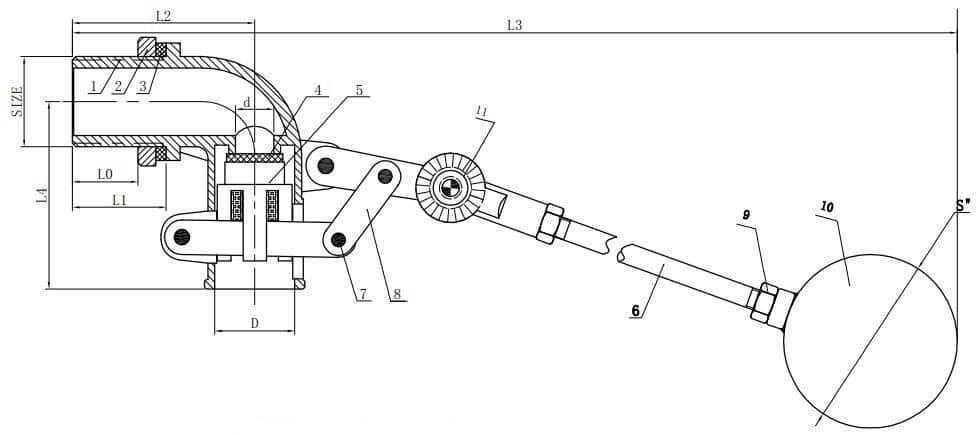

Parts and Materials

No.	Part Name	Material	No.	Part Name	Material
1	Body	SS304, SS316	7	Pin	SS304, SS316
2	Lock nut	SS304, SS316	8	Level	SS304, SS316
3	Gasket	NBR	9	Nut	SS304, SS316
4	Sealing	Silicone, KFM, NBR	10	Ball	Plastic ABS
5	Plug	POM	11	Regulator	SS304, SS316
6	Stem	SS304, SS316

Connnection Dimensions (mm)

Size	L0	L1	L2	L3	L4	d	D	S
1/2”	17	25	50	400	47	8.5	18	115mm
3/4”	19	27	54	500	54	11	23	135mm
1”	19	28	55	530	70	16	30	150mm
1 1/4”	19	30	70	750	92	20	42	200mm
1 1/2”	24	36	75	760	95	23	42	200mm
2”	25	37	80	820	115	28	50	220mm
