Float Ball · Steam Trap · Continuous Discharge

Free Float Ball Steam Traps for Efficient Condensate Removal

PN16 / PN25 / PN40, sizes 1/2″ to 8″ (DN15~200mm), available in cast iron GG25, ductile iron A536, cast steel WCB, stainless steel CF8 and CF8M per GB/T13927-2008.

Overview

Free float ball steam trap is one of the most advanced traps, because it is normally discharged timely of condensed water in the pipelines and heating equipment. This trap has an extensive application in petroleum, chemical industry, light textile, printing, pharmacy, paper making, foods and mines. Flowspec Luokai can manufacture and supply the free float ball steam trap according to GB/T13927-2008 with sizes of 1/2″ ~ 8″ (DN15~200mm).

1. Features

Stable discharge of water with large amount, small rate of steam leakage, high rate of black pressure.
The main part hollow free-ball of steel is finely ground in the trap.
The structure of stainless steel provides the ability of anti-corruption and longer service life.

2. Technical Specifications

PN16 / PN25 / PN40
Size: 1/2″ ~ 8″ (DN15~DN200mm)
Materials: cast iron GG25, ductile iron A536, cast steel WCB, stainless steel 304 CF8, stainless steel 316 CF8M
Applicable medium: steam
Applicable temperature: -29℃ ~ +425℃

3. Standards

Design & manufacturing: GB/T13927-2008
Face to face: GB/T12250
Flanged ends: GB/T9113, ASME B16.5
Threaded ends: BSP, NPT, ISO228
Inspection & testing: GB/T12251

4. Applications

Petroleum
Chemical industry
Pharmacy
Chemical fertilizer
Power plant
Textile
Printing & dyeing

Materials

Part	Material
Body, bonnet	Cast iron, Cast steel, Stainless steel
Float Ball	Stainless steel
Seat	Chromium Stainless Steel
Internal Filters	Stainless Steel
Gasket	The Stainless Steel Metal Twine the pad

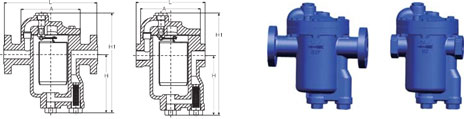

Dimensions — Free Float Ball Type (B1F~B6F)

Model	Size	L (mm)	H	H1	A	Weight (kg)	max. pressure
B1F	1/2″, 3/4″, 1″	170	100	175	96	4.8, 5, 6	18bar
B2F	3/4″, 1″	210	133	228	144	9, 10	18bar
B3F	1″	240	173	296	178	15	18bar
B4F	1-1/4″, 1-1/2″	280	185	347	203	24, 25	18bar
B5F	1-1/2″, 2″	300	223	388	230	31, 33.5	18bar
B6F	2″	350	260	446	273	45.5	18bar

Main Connection Size (B1~B4)

Model	Size	L (mm)	H	H1	A	Weight (kg)	max. pressure
B1	1/2″, 3/4″, 1″	128	100	175	96	21	18bar
B2	3/4″, 1″	166	133	228	144	3.5	18bar
B3	1″	198	173	296	178	7.2	18bar
B4	1-1/4″, 1-1/2″	232	185	347	203	13.5	18bar

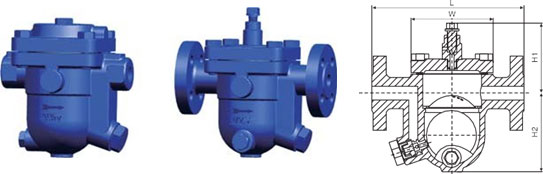

CS Series Dimensions

Model	DN	Connection	Pressure (Mpa)	Max Temp (℃)	L	L1	H2	W	Weight (kg)
CS61H-16C-B / CS11H-16C-D	15-25	Thread Socket Weld	0.01-1.6	300	150 170	85 100	105 128	100 120	6 8.5
CS61H-16C-B / CS11H-16C-D	32-50	Thread Socket Weld	0.01-1.6	300	230	100	165	185	14
CS41H-16C-B	15-20 25	Flange	0.01-4.0	300	195 210	100	115	135	10
CS41H-16C-B	15-20 25	Flange	0.01-4.0	300	210 230	100	120	135	11
CS41H-25C-B / CS41H-40C-B	15-20 25	Flange	0.01-4.0	350 / 425	250	100	130	135	12.5
CS41H-16C-D	20-32	Flange	0.01-4.0	300	270	10	165	175	16.5
CS41H-16C-D	40 50	Flange	0.01-4.0	300	270 290	105	165	175	18.5
CS11H-25C-D / CS41H-40C-D	20-50	Flange	0.01-4.0	350 / 425	350	125	190	200	27
S41H-16C-F	50-65 80	Flange	0.01-4.0	300	410 430	130	250	270	52
S41H-16C-F	50-65 80-100	Flange	0.01-4.0	300	430	130	260	270	67
CS41H-25-F / CS41H-40-F	50-65 80-100	Flange	0.01-4.0	350 / 425	430	130	260	270	39
CS41H-16C-G	80-100	Flange	0.01-4.0	300	550	150	310	285	85
CS41H-16C-G	80-100	Flange	0.01-4.0	300	570	190	340	315	108
CS41-25-G / CS41H-40-G	80-150	Flange	0.01-4.0	350 / 425	570	190	340	315	116
CS41H-16C-GG	150-200	Flange	0.01-1.6	350	575	210	360	330	143
