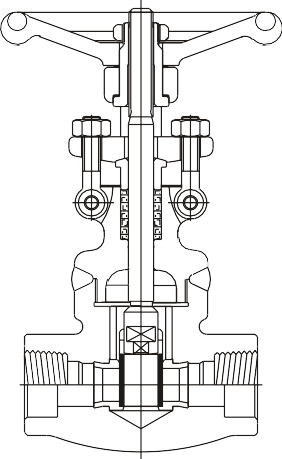

Forged Steel Bellows Seal Gate Valves for Critical High-Temperature Service

Overview

Forged steel bellows seal gate valve can solve the most frequent and serious problems that valve faces with is stem gland packing leakage, which results in wasted and increased downtime for the factory. Apart from the high cost of energy losses, gland leakages can also cause serious environmental, ecological and health hazards to factory workers. The leakage of sensitive materials can also constitute to the fire hazard, explosion, or damage to equipment by corrosive materials. If the leaked air enters into the pipeline, it could produce inflammable explosive or poisonous mixtures. Gland packed valve often requires continual maintenance in accessibility creating particular difficulties. Flowspec Luokai manufactures the forged steel bellows seal gate valve applicable to working conditions of high temperatures, withstanding over 10,000 cycles without failure. For getting best prices, just feel free to contact us now.

Gate valves are available in three bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304L/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet, with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
