JIS Standard · Floating Ball · 2-Piece Design

Precision-Engineered JIS Ball Valves for Industrial Flow Control

Manufactured to JIS B2002 — JIS5K / JIS10K, sizes 15A~300A, available in SCS13A, SCS14A, and FC25.

Overview

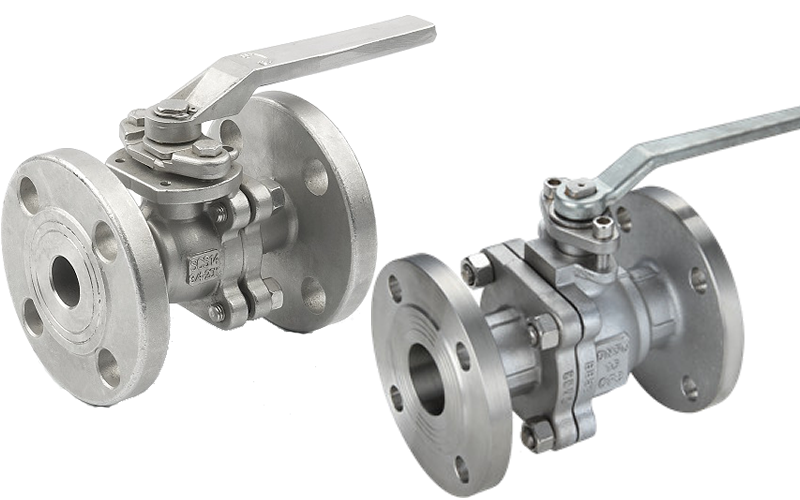

2pc floating ball valve JIS flanged ends is the one flanged type ball valve according to JIS B2002. It can be divided into 2pc flanged ball valve stainless steel 304(SCS13A), 316(SCS14A) and 2pc flanged ball valve carbon steel (FC25) according to valve materials. The two pieces floating ball valve JIS standard is with JIS B2002 face to face length.

1. Features

Full port
Fully opening or closing
Blow-out proof stem, anti-static device
Two pieces structure, easy operation and maintenance
PED97/23/EC (CE0035) approved
Investment casting approved to AD2000-WO certificate

2. Technical Specifications

JIS10K
15A~300A
Materials: SCS13A/SCS14A

3. Standards

Design: JIS B2002
Face to face: JIS B2002
Flanged ends: JIS B2238
Inspection & testing: JIS B2003

4. Applications

Applicable medium: water, oil, gas, corrosive liquids
Applicable temperature: -29℃ ~ +120℃ (higher temperature is available upon request)

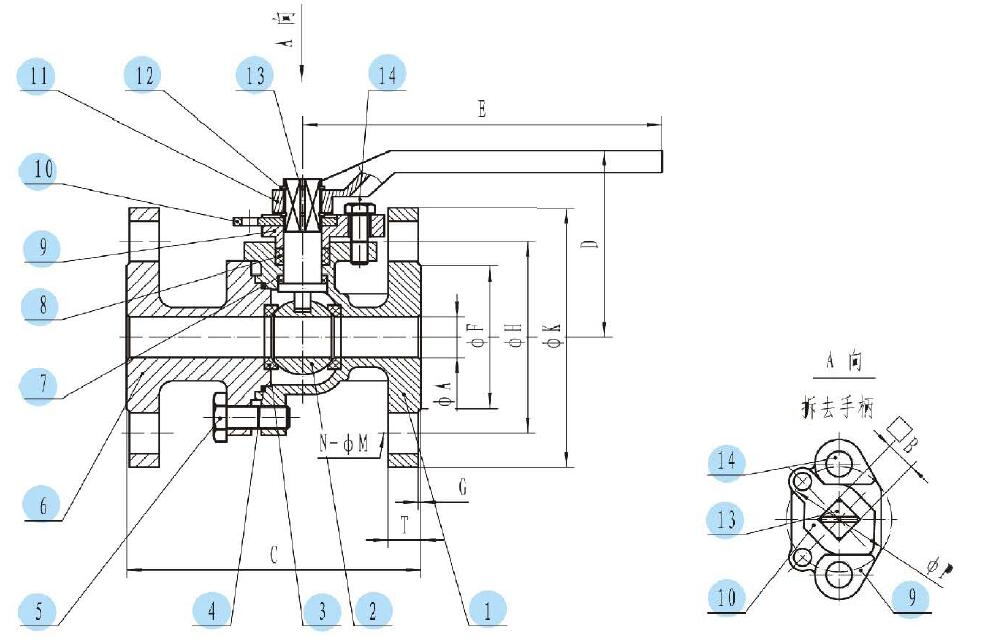

Parts and Materials

No.	Part	Material
1	Body	SCS13A, SCS14A
2	Ball	SCS13A, SCS14A
3	Seat	RTPFE
4	Body seat	PTFE
5	Bolt	SUS304
6	Cap	SCS13A, SCS14A
7	Stem seal	PTFE
8	Stem packing	PTFE
9	Gland	SCS13A, SCS14A
10	Stopper	SUS304
11	Handle	SUS304
12	Spring washer	SUS304
13	Stem	SUS304
14	Bolt	SUS304

Main Connection Dimensions — Full Bore JIS 10K

DN	A	B	D	E	P	F	H	K	T	G	M	N	C
15A	15	11	73	130	42	52	70	95	12	1	15	4	108
20A	20	11	76	130	42	58	75	100	14	1	15	4	117
25A	25	14	86	160	50	70	90	125	14	1	19	4	127
32A	32	14	91	160	50	80	100	135	16	2	19	4	140
40A	38	17	119	200	70	85	105	140	16	2	19	4	165
50A	50	17	127	200	70	100	120	155	16	2	19	4	178
65A	65	22	136	200	102	120	140	175	18	2	19	4	190
80A	76	22	164	325	102	130	150	185	18	2	19	8	203
100A	94	22	178	325	102	155	175	210	18	2	19	8	229
