2PC FLOATING BALL VALVE JIS FLANGED

Product introduction

2pc floating ball valve JIS flanged ends is the one flanged type ball valve according to JIS B2002. It can be divided into 2pc flanged ball valve stainless steel 304(SCS13A), 316(SCS14A) and 2pc flanged ball valve carbon steel (FC25) according to valve materials. The two pieces floating ball valve JIS standard is with JIS B2002 face to face length.

1. Features

  • Full port
  • Fully opening or closing
  • Blow-out proof stem, anti-static device
  • Two pieces structure, easy operation and maintenance
  • PED97/23/EC (CE0035) approved
  • Investment casting approved to AD2000-WO certificate

2. Technical Specifications

  • JIS10K
  • 15A~300A
  • Materials: SCS13A/SCS14A

3. STANDARDS

  • Design & manufacturing: JIS B2002
  • Face to face: JIS B2002
  • Flanged ends: JIS B2238
  • Inspection & testing: JIS B2003

4. APPLICATIONS

  • Applicable medium: water, oil, gas, corrosive liquids
  • Applicable temperature: -29℃~120℃ (higher temperature is available upon request)

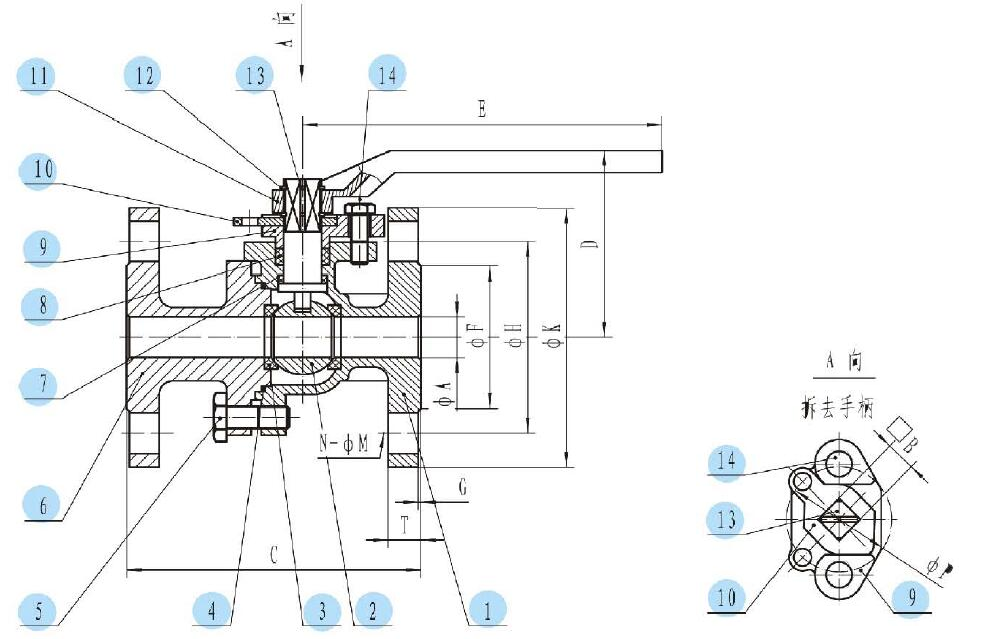

2PC Floating Ball Valve JIS Flanged overview
2PC Ball Valve JIS Flanged

Parts and Materials

No. Part Material
1 Body SCS13A, SCS14A
2 Ball SCS13A, SCS14A
3 Seat RTPFE
4 Body seat PTFE
5 Bolt SUS304
6 Cap SCS13A, SCS14A
7 Stem seal PTFE
8 Stem packing PTFE
9 Gland SCS13A, SCS14A
10 Stopper SUS304
11 Handle SUS304
12 Spring washer SUS304
13 Stem SUS304
14 Bolt SUS304

MAIN CONNECTION DIMENSIONS FULL BORE JIS 10K

DN A B D E P F H K T G M N C
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
15A 15 11 73 130 42 52 70 95 12 1 15 4 108
20A 20 11 76 130 42 58 75 100 14 1 15 4 117
25A 25 14 86 160 50 70 90 125 14 1 19 4 127
32A 32 14 91 160 50 80 100 135 16 2 19 4 140
40A 38 17 119 200 70 85 105 140 16 2 19 4 165
50A 50 17 127 200 70 100 120 155 16 2 19 4 178
65A 65 22 136 200 102 120 140 175 18 2 19 4 190
80A 76 22 164 325 102 130 150 185 18 2 19 8 203
100A 94 22 178 325 102 155 175 210 18 2 19 8 229
V2

2PC FLOATING BALL VALVE JIS FLANGED



Product introduction

2pc floating ball valve JIS flanged ends is the one flanged type ball valve according to JIS B2002. It can be divided into 2pc flanged ball valve stainless steel 304(SCS13A), 316(SCS14A) and 2pc flanged ball valve carbon steel (FC25) according to valve materials. The two pieces floating ball valve JIS standard is with JIS B2002 face to face length.

1. Features

  • Full port
  • Fully opening or closing
  • Blow-out proof stem, anti-static device
  • Two pieces structure, easy operation and maintenance
  • PED97/23/EC (CE0035) approved
  • Investment casting approved to AD2000-WO certificate

2. Technical Specifications

  • JIS10K
  • 15A~300A
  • Materials: SCS13A/SCS14A

3. STANDARDS

  • Design & manufacturing: JIS B2002
  • Face to face: JIS B2002
  • Flanged ends: JIS B2238
  • Inspection & testing: JIS B2003

4. APPLICATIONS

  • Applicable medium: water, oil, gas, corrosive liquids
  • Applicable temperature: -29℃~120℃ (higher temperature is available upon request)
2PC Floating Ball Valve JIS Flanged overview
2PC Ball Valve JIS Flanged

Parts and Materials

No. Part Material
1 Body SCS13A, SCS14A
2 Ball SCS13A, SCS14A
3 Seat RTPFE
4 Body seat PTFE
5 Bolt SUS304
6 Cap SCS13A, SCS14A
7 Stem seal PTFE
8 Stem packing PTFE
9 Gland SCS13A, SCS14A
10 Stopper SUS304
11 Handle SUS304
12 Spring washer SUS304
13 Stem SUS304
14 Bolt SUS304

MAIN CONNECTION DIMENSIONS FULL BORE JIS 10K

DN A B D E P F H K T G M N C
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
15A 15 11 73 130 42 52 70 95 12 1 15 4 108
20A 20 11 76 130 42 58 75 100 14 1 15 4 117
25A 25 14 86 160 50 70 90 125 14 1 19 4 127
32A 32 14 91 160 50 80 100 135 16 2 19 4 140
40A 38 17 119 200 70 85 105 140 16 2 19 4 165
50A 50 17 127 200 70 100 120 155 16 2 19 4 178
65A 65 22 136 200 102 120 140 175 18 2 19 4 190
80A 76 22 164 325 102 130 150 185 18 2 19 8 203
100A 94 22 178 325 102 155 175 210 18 2 19 8 229
V3

2PC FLOATING BALL VALVE JIS FLANGED

Product introduction

2pc floating ball valve JIS flanged ends is the one flanged type ball valve according to JIS B2002. It can be divided into 2pc flanged ball valve stainless steel 304(SCS13A), 316(SCS14A) and 2pc flanged ball valve carbon steel (FC25) according to valve materials. The two pieces floating ball valve JIS standard is with JIS B2002 face to face length.

1. Features

  • Full port
  • Fully opening or closing
  • Blow-out proof stem, anti-static device
  • Two pieces structure, easy operation and maintenance
  • PED97/23/EC (CE0035) approved
  • Investment casting approved to AD2000-WO certificate

2. Technical Specifications

  • JIS10K
  • 15A~300A
  • Materials: SCS13A/SCS14A

3. STANDARDS

  • Design & manufacturing: JIS B2002
  • Face to face: JIS B2002
  • Flanged ends: JIS B2238
  • Inspection & testing: JIS B2003

4. APPLICATIONS

  • Applicable medium: water, oil, gas, corrosive liquids
  • Applicable temperature: -29℃~120℃ (higher temperature is available upon request)
2PC Floating Ball Valve JIS Flanged overview
2PC Ball Valve JIS Flanged

Parts and Materials

No. Part Material
1 Body SCS13A, SCS14A
2 Ball SCS13A, SCS14A
3 Seat RTPFE
4 Body seat PTFE
5 Bolt SUS304
6 Cap SCS13A, SCS14A
7 Stem seal PTFE
8 Stem packing PTFE
9 Gland SCS13A, SCS14A
10 Stopper SUS304
11 Handle SUS304
12 Spring washer SUS304
13 Stem SUS304
14 Bolt SUS304

MAIN CONNECTION DIMENSIONS FULL BORE JIS 10K

DN A B D E P F H K T G M N C
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
15A 15 11 73 130 42 52 70 95 12 1 15 4 108
20A 20 11 76 130 42 58 75 100 14 1 15 4 117
25A 25 14 86 160 50 70 90 125 14 1 19 4 127
32A 32 14 91 160 50 80 100 135 16 2 19 4 140
40A 38 17 119 200 70 85 105 140 16 2 19 4 165
50A 50 17 127 200 70 100 120 155 16 2 19 4 178
65A 65 22 136 200 102 120 140 175 18 2 19 4 190
80A 76 22 164 325 102 130 150 185 18 2 19 8 203
100A 94 22 178 325 102 155 175 210 18 2 19 8 229
V4 OLD STYLE

2PC FLOATING BALL VALVE JIS FLANGED

Product information

2pc floating ball valve JIS flanged ends is the one flanged type ball valve according to JIS B2002. It can be divided into 2pc flanged ball valve stainless steel 304(SCS13A), 316(SCS14A) and 2pc flanged ball valve carbon steel (FC25) according to valve materials. The two pieces floating ball valve JIS standard is with JIS B2002 face to face length.

1. Working Principle

The floating ball and stem structure forms a reliable sealing path between seats and body. With operation of handle, the quarter-turn movement controls fully opening or closing performance for process line.

4. Applications

  • Water, oil, gas and corrosive liquid service
  • Process and utility lines in general industry
  • Applicable temperature: -29℃~120℃ (higher temperature on request)

2. Technical Specifications

  • Pressure class: JIS10K
  • Size range: 15A~300A
  • Materials: SCS13A/SCS14A
  • Design & manufacturing: JIS B2002
  • Face to face: JIS B2002
  • Flanged ends: JIS B2238
  • Inspection & testing: JIS B2003
2PC Floating Ball Valve JIS Flanged overview old style
2PC Ball Valve JIS Flanged

Parts and Materials

No. Part Material
1 Body SCS13A, SCS14A
2 Ball SCS13A, SCS14A
3 Seat RTPFE
4 Body seat PTFE
5 Bolt SUS304
6 Cap SCS13A, SCS14A
7 Stem seal PTFE
8 Stem packing PTFE
9 Gland SCS13A, SCS14A
10 Stopper SUS304
11 Handle SUS304
12 Spring washer SUS304
13 Stem SUS304
14 Bolt SUS304

MAIN CONNECTION DIMENSIONS FULL BORE JIS 10K

DN A B D E P F H K T G M N C
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
15A 15 11 73 130 42 52 70 95 12 1 15 4 108
20A 20 11 76 130 42 58 75 100 14 1 15 4 117
25A 25 14 86 160 50 70 90 125 14 1 19 4 127
32A 32 14 91 160 50 80 100 135 16 2 19 4 140
40A 38 17 119 200 70 85 105 140 16 2 19 4 165
50A 50 17 127 200 70 100 120 155 16 2 19 4 178
65A 65 22 136 200 102 120 140 175 18 2 19 4 190
80A 76 22 164 325 102 130 150 185 18 2 19 8 203
100A 94 22 178 325 102 155 175 210 18 2 19 8 229
V5 CASE TITLE STYLE

2PC FLOATING BALL VALVE JIS FLANGED

Product introduction

2pc floating ball valve JIS flanged ends is the one flanged type ball valve according to JIS B2002. It can be divided into 2pc flanged ball valve stainless steel 304(SCS13A), 316(SCS14A) and 2pc flanged ball valve carbon steel (FC25) according to valve materials. The two pieces floating ball valve JIS standard is with JIS B2002 face to face length.

1. Features

  • Full port
  • Fully opening or closing
  • Blow-out proof stem, anti-static device
  • Two pieces structure, easy operation and maintenance
  • PED97/23/EC (CE0035) approved
  • Investment casting approved to AD2000-WO certificate

2. Technical Specifications

  • JIS10K
  • 15A~300A
  • Materials: SCS13A/SCS14A

3. STANDARDS

  • Design & manufacturing: JIS B2002
  • Face to face: JIS B2002
  • Flanged ends: JIS B2238
  • Inspection & testing: JIS B2003

4. APPLICATIONS

  • Applicable medium: water, oil, gas, corrosive liquids
  • Applicable temperature: -29℃~120℃ (higher temperature is available upon request)
2PC Floating Ball Valve JIS Flanged overview V5
2PC Ball Valve JIS Flanged

Parts and Materials

No. Part Material
1 Body SCS13A, SCS14A
2 Ball SCS13A, SCS14A
3 Seat RTPFE
4 Body seat PTFE
5 Bolt SUS304
6 Cap SCS13A, SCS14A
7 Stem seal PTFE
8 Stem packing PTFE
9 Gland SCS13A, SCS14A
10 Stopper SUS304
11 Handle SUS304
12 Spring washer SUS304
13 Stem SUS304
14 Bolt SUS304

MAIN CONNECTION DIMENSIONS FULL BORE JIS 10K

DN A B D E P F H K T G M N C
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
15A 15 11 73 130 42 52 70 95 12 1 15 4 108
20A 20 11 76 130 42 58 75 100 14 1 15 4 117
25A 25 14 86 160 50 70 90 125 14 1 19 4 127
32A 32 14 91 160 50 80 100 135 16 2 19 4 140
40A 38 17 119 200 70 85 105 140 16 2 19 4 165
50A 50 17 127 200 70 100 120 155 16 2 19 4 178
65A 65 22 136 200 102 120 140 175 18 2 19 4 190
80A 76 22 164 325 102 130 150 185 18 2 19 8 203
100A 94 22 178 325 102 155 175 210 18 2 19 8 229
